The Case
The coffee hasn't even kicked in, but the pressure is already on. You’re Maya, the new Asset Management Analyst at the Capital City Transit Authority (CCTA), and you’ve been on the job for exactly three weeks. CCTA is a public institution, which means it’s perpetually caught between rising operational costs and intense public scrutiny. Lately, the scrutiny has been winning. A string of bus breakdowns on major routes has led to a flood of angry social media posts and a sharp drop in rider satisfaction scores.

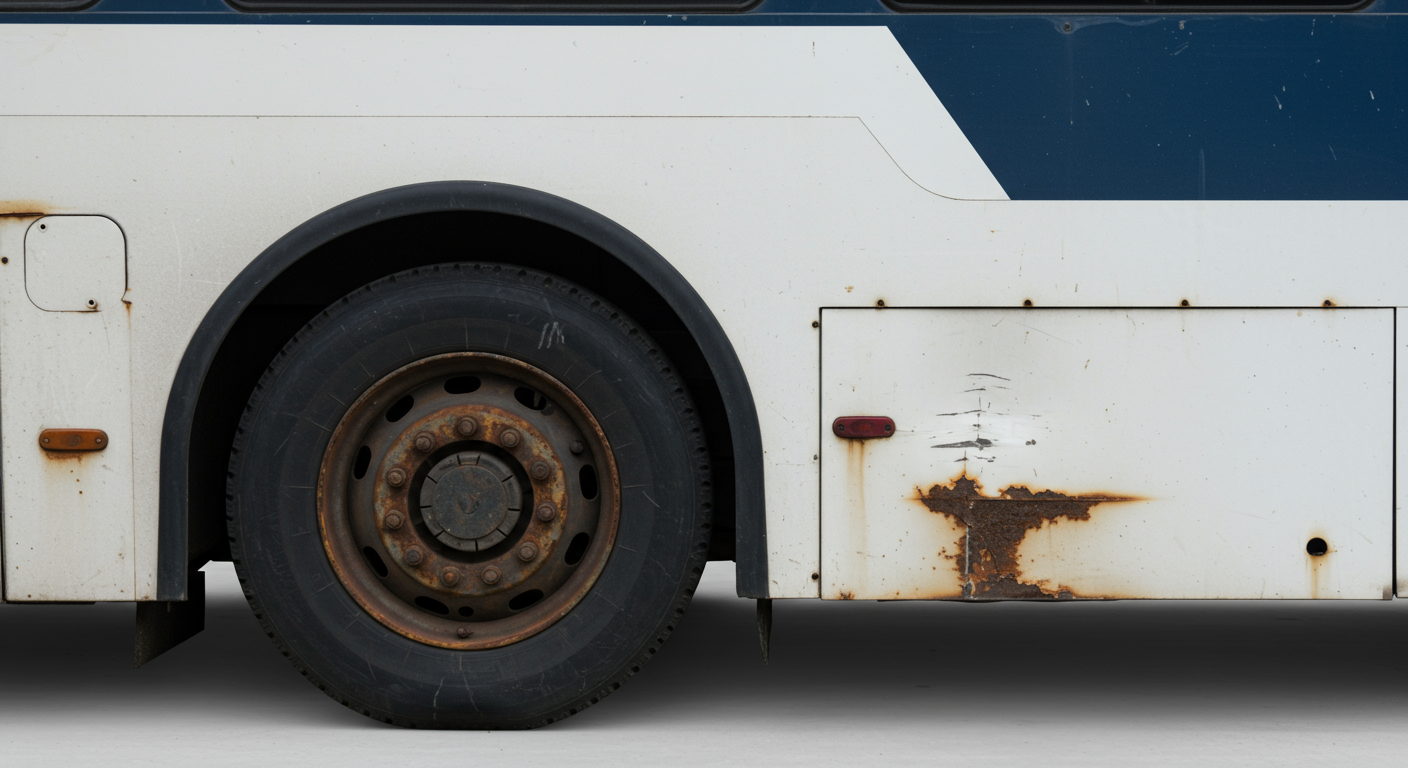

Your new boss, the CFO Maria Chen, sees the big picture. She knows the fleet is aging and that throwing money at emergency repairs is a losing game. She wants to secure a multi-million dollar bond to fund a systematic fleet renewal program, but the city council won't approve it without an ironclad, data-driven business case. The problem? CCTA’s “data” is a chaotic mess of disconnected spreadsheets, paper maintenance logs filed in dusty cabinets, and the institutional memory of a few veteran mechanics.
On the other side of the aisle is Frank, the Director of Operations. Frank has been with CCTA for 30 years and trusts his gut and his team's experience far more than any spreadsheet. He sees your role and the CFO’s talk of a new “Asset Information System” as expensive, unnecessary overhead. "We don't need a fancy computer program to tell us a bus is old," he grumbled in a meeting yesterday. "We need more mechanics and more parts, not more analysts."
Maria has tasked you with bridging this gap. She needs a preliminary proposal that outlines what a modern asset information system for the bus fleet would actually look like. This proposal has to be concrete enough to convince her that it can produce the data she needs for the city council, but also practical enough to show Frank that it will help his team on the ground, not just create more administrative work. You have a meeting with both of them next week. Your challenge is to define the information CCTA truly needs and design a system that serves both the spreadsheet and the wrench.
Resources and Data
You've started digging through the digital and physical archives at CCTA to understand the current state of affairs. Here's what you've found so far.
Key Document: Email from the CFO
Excerpt from 'Bus Maintenance Log Q3'
| Bus ID | Purchase Year | Last Service | Service Notes | Recent Driver Complaint |
|---|---|---|---|---|
| CCTA-405 | 2015 | 2023-05-12 | Brake system flush and inspection. Replaced rear pads. OK. | brakes feel soft |
| GILLIG-988 | 2008 | 2022-11-20 | Oil change, topped up fluids. | check engine light is on again |
| 211B | 2021 | 2023-07-01 | 6-month standard check. All systems green. | New bus, no issues reported. |
| CCTA-312A | 2012 | 2023-01-15 | engine check ok | weird noise from back |
| NF-7701 | 2019 | 2023-06-22 | Fixed rear door mechanism. | door sticks |
| HYB-045 | 2017 | 2023-04-03 | Replaced battery assembly. Software update. | |
| GILLIG-991 | 2009 | 2021-08-30 | fixed brakes | None |
| 442C | 2005 | 2023-03-19 | Extensive engine work. Replaced two belts. | loud humming sound at high speed |
| CCTA-810C | 2020 | 2023-08-09 | Tire rotation and fluid check. | A/C is not blowing cold air. |
| ELC-2022 | 2022 | 2023-07-25 | Initial inspection. All OK. | |
| NF-6543 | 2018 | 2022-12-11 | None | turn signal light is out |
| 301A | 2011 | 2023-02-05 | Oil change | brakes squealing loudly |
📊 View Diagram: Current Workflow: Bus Breakdown
Asset Hierarchy
Your Task
You are Maya, the Asset Management Analyst. Your task is to prepare a clear, concise outline for a presentation that makes the case for a new, integrated asset information system at CCTA. This outline should be structured to persuade both the data-focused CFO, Maria, and the operations-focused Director, Frank.
Using the narrative and the resources provided, develop an outline that: 1. Defines the specific types of information CCTA needs to collect for its bus fleet. 2. Describes the key components or modules of your proposed information system. 3. Explains exactly how this system will help CCTA make better, data-driven decisions about maintenance, fleet renewal, and service levels.
How to Approach This Case
Structure your analysis by following these four steps:
- Define the Problem: What is the core challenge CCTA is facing? Look beyond the surface-level issues.
- Identify Core Issues: Based on the evidence, what specific problems with data and process are contributing to the main problem?
- Identify Possible Solutions: Brainstorm the features and functions of a system that would address the core issues.
- Recommend a Best Solution: Structure your ideas into a coherent recommendation, explaining how your solution directly solves the problem and provides value to all stakeholders.
Guiding Questions
Use these questions to help structure your thoughts and build your presentation outline.
- Looking at the sample maintenance log, what are the top three problems with how CCTA currently records data? How does this impact Maria's ability to build a business case?
- What does the breakdown workflow diagram reveal about the communication and efficiency between CCTA's departments? Where are the biggest bottlenecks?
- Beyond the messy data you can see, what critical information is CCTA not capturing about its buses (e.g., performance, costs, utilization)?
- What are the essential components (or modules) you would propose for a new Asset Information System? Think beyond just a simple database.
- How would a proper Asset Hierarchy help organize CCTA's information? Provide a simple example for a bus.
- How would you explain the benefits of this new system to Frank? Frame it in terms of how it helps his mechanics and supervisors on a daily basis.
- What are the three most powerful arguments for how this system will help Maria justify the fleet renewal program to the city council?
- How does a robust information system connect the dots between a single "check engine light" complaint and a multi-million dollar fleet investment decision?
An Expert Response
Note on the Expert Response
This is one possible expert-level response. It is designed to be a strong example of how to apply the concepts from the case. Your own response may be different but equally valid if it is well-reasoned and supported by the evidence.
Here is a sample presentation outline that addresses the task.
Presentation Outline: A Data-Driven Future for CCTA's Fleet
Audience: Maria Chen (CFO), Frank Miller (Dir. of Operations) Presenter: Maya Singh (Asset Management Analyst)
1. The Current State: Why We're Stuck in Reactive Mode * The Problem: Unreliable service, rising emergency repair costs, and an inability to plan for the future. * The Root Cause: Our current "system" is not a system at all. * Inconsistent Data: Show example from the maintenance log (e.g., "fixed brakes" vs. "replaced pads and rotors"). We can't analyze trends. * Siloed Information: Reference the workflow diagram. Maintenance, Parts, and Finance aren't connected. A breakdown triggers a chaotic phone tree, not a smooth process. * No Big Picture: We can't answer basic questions like, "What is the true cost of running Bus 408?" or "Which bus models are failing most often?"
2. The Vision: A Single Source of Truth * Introduce the concept of an integrated Asset Information System (AIS). * The Goal: Move from reactive repairs to proactive asset management. Make decisions based on data, not just emergencies.
3. What We Need to Know: Core Asset Information * To manage the fleet, we must track four key types of information for every single bus: * Static Data: (The basics) - Make, model, purchase date, purchase price, warranty info, expected useful life. * Dynamic/Operational Data: (How it's used) - Kilometers driven, fuel consumption, fault codes from onboard diagnostics, route assignments. * Maintenance Data: (What we do to it) - All scheduled and unscheduled work orders, parts used, labor hours, associated costs. * Financial Data: (What it costs us) - Acquisition cost, depreciation, total maintenance cost-to-date, and eventually, disposal value.
4. The Solution: Components of the Asset Information System (AIS) * This isn't one giant piece of software, but a set of connected tools: * Asset Register: The foundation. A central database containing the static and financial data for every bus, organized in a clear Asset Hierarchy (e.g., Bus > Engine > Alternator). * Work Order Management Module: A digital tool for mechanics. Replaces paper logs. Creates, assigns, and closes work orders. Tracks parts and labor for every job. Frank's team can use tablets to update jobs in real-time. * Performance Monitoring Dashboard: A real-time view for Operations. Tracks key metrics like fleet availability, mean time between failures, and buses out of service. Helps Frank allocate resources effectively. * Reporting & Analytics Engine: The tool for Maria and City Council. Generates reports on total cost of ownership, failure trend analysis, and ROI models for fleet renewal.
5. The Payoff: Connecting Data to Decisions * For Frank (Operations): * Smarter Maintenance: The system will flag a bus for preventative maintenance based on kilometers driven or fault codes, before it breaks down on the road. * Better Resource Planning: He can see work backlogs, parts inventory, and mechanic availability at a glance. No more whiteboard scheduling. * For Maria (Finance & Strategy): * Ironclad Business Cases: We can show the council, "Buses from our 2008 fleet cost us 40% more in maintenance per kilometer than our 2018 fleet. Replacing them will save $X million over 5 years." * Optimized Renewals: The data will tell us the precise economic tipping point when it's cheaper to replace a bus than to continue repairing it.
Assess Yourself
Evaluate Your Own Response
Before moving on, take a moment to reflect. Compare your own ideas and outline against the criteria below. This isn't about being 'right' or 'wrong,' but about identifying areas for growth. How could you make your analysis even stronger?
- Problem Identification: You clearly defined the core problem as a lack of reliable, centralized data, which leads to operational inefficiency and an inability to plan strategically.
- Analysis of Evidence: You effectively used the provided resources (email, data, diagram) to identify specific issues with CCTA's current processes and data collection methods.
- Identification of Information Needs: You accurately identified the key categories of asset information (static, dynamic, maintenance, financial) required to manage a complex fleet.
- System Component Design: You proposed a logical set of components for an information system that addresses the identified needs, such as an asset register, work order management, and reporting tools.
- Solution Justification: You clearly explained how the proposed system would support specific decisions related to maintenance, renewal, and service levels.
- Stakeholder-Focused Communication: Your recommendation considered the different needs and perspectives of both the CFO (data for strategic planning) and the Director of Operations (tools for daily efficiency).
Learning Progress
By working through this case, you have put into practice the skills of an effective asset management analyst. You identified the critical types of information needed to manage a public bus fleet, described the potential components of an asset information system, and explained how that system directly supports crucial decisions about maintenance, renewal, and service quality.
Next Steps
You have successfully analyzed the situation at Capital City Transit and proposed a path forward. This kind of problem-solving is at the heart of asset management. Please navigate back to the course to continue your learning journey.
