The Old Ironhorse Dilemma: Optimizing an Aging Pumping Station

An Expert Response

TO: Maria Flores, Director of Operations FROM: Alex Chen, Asset Manager SUBJECT: Recommendation for Pumping Station 3 Optimization

1. Problem Definition

Pumping Station 3 ("Old Ironhorse") is currently the source of a significant budget overrun due to excessive energy consumption. Furthermore, its reliance on aging, single-pump operational logic presents an unacceptable level of risk for a critical failure that would impact service to a large portion of the valley. The current strategy is neither financially sustainable nor operationally resilient.

2. Analysis of Core Issues

My analysis of the performance data and station logic reveals two core issues:

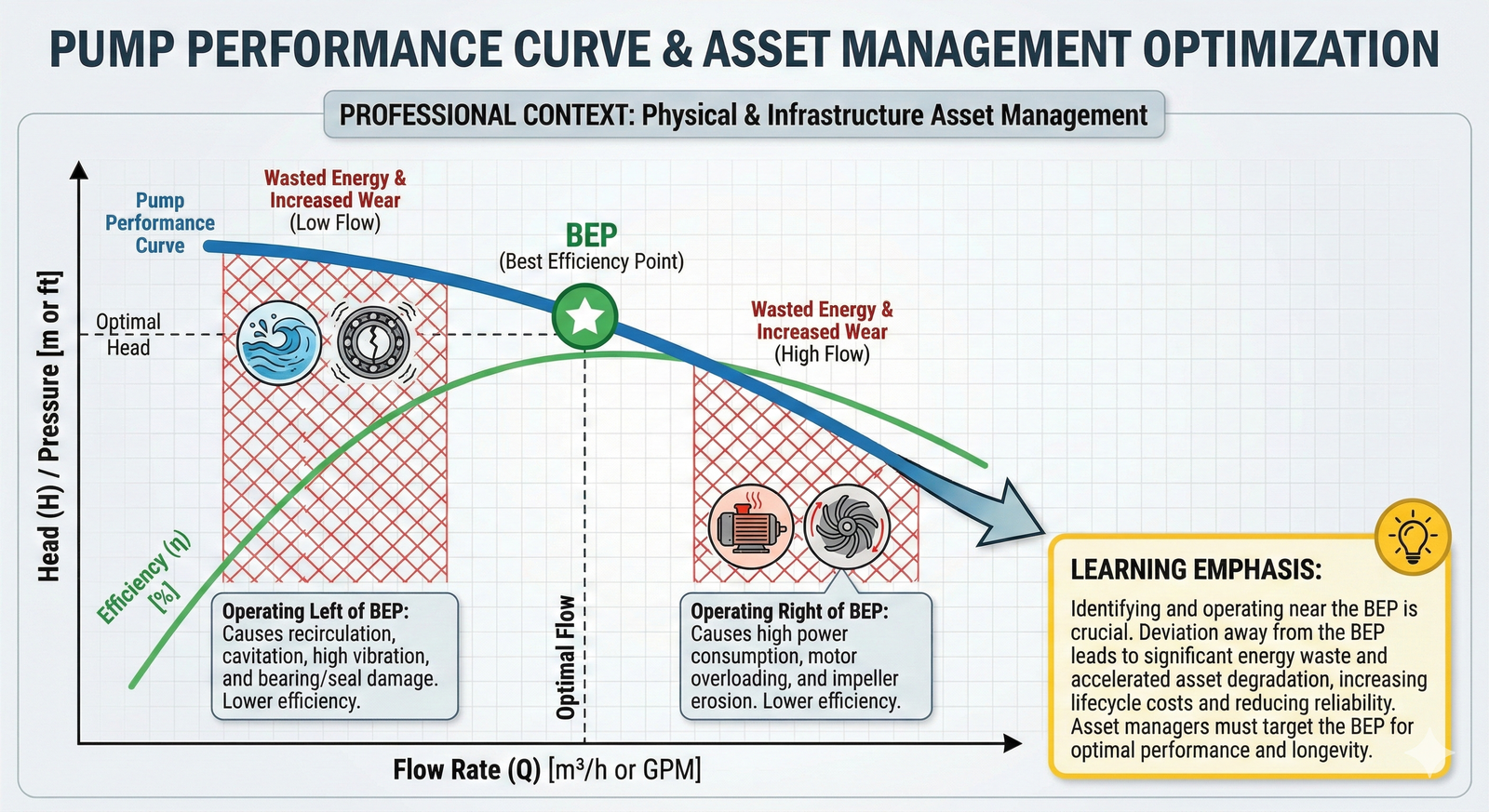

• Systemic Inefficiency: The station is configured to use the large, energy-intensive Pump 1 for all demand levels. The performance data clearly shows that during low-demand periods (approx. 11 PM - 5 AM), Pump 1 operates far from its Best Efficiency Point (BEP). It consumes a high amount of energy (kWh) for a low output (GPM), directly causing the cost overruns identified by the finance department.
• Concentrated Risk: The near-total reliance on a single, aging pump with no recent predictive maintenance creates a single point of failure. A catastrophic failure of Pump 1 is a low-probability but high-impact event that we are not adequately prepared for. The "if it ain't broke" strategy is no longer defensible.

3. Evaluation of Alternatives

• Option A: Status Quo. Unacceptable. This guarantees continued budget deficits and ignores the significant operational risk.
• Option B: Full Immediate Replacement. While this would solve the problem long-term, the high capital cost and required six-week shutdown present their own major financial and operational challenges. It is a viable but disruptive solution.
• Option C: Data-Driven Optimization & Phased Modernization. This approach offers the best balance of immediate impact and long-term strategy.

4. Recommendation

I recommend we immediately pursue Option C: Data-Driven Optimization & Phased Modernization. This plan consists of two phases:

Phase 1: Immediate Operational Optimization (30-60 Days)

• Reprogram Control Logic: Immediately contract an engineer to update the station's control logic. The new logic will use the smaller, more efficient Pumps 2 and 3 to handle low-to-moderate demand, activating the large Pump 1 only during peak demand periods. Based on the performance data, this single change could reduce off-peak energy consumption by up to 70%, directly addressing the budget crisis.
• Implement Predictive Maintenance: Begin a predictive maintenance program for Pump 1, including vibration analysis and thermal imaging, to establish a health baseline and identify any imminent failure risks.

Phase 2: Phased Capital Replacement (1-3 Years)

• Develop a Replacement Plan: Use the data from Phase 1 to develop a long-term, phased plan to replace the aging pumps with modern, variable-speed units. This avoids a single massive capital outlay and a prolonged station shutdown. We can replace the smaller pumps first, and then finally Pump 1, using the documented energy savings from Phase 1 to help justify the capital expenditure.

This two-phase approach provides an immediate, low-cost solution to our most pressing financial problem while creating a clear, data-informed path to modernize our most critical pumping station and ensure its long-term reliability.
